| Power: | 150w | Material: | Die Cast Aluminum |
|---|---|---|---|
| Lumen: | 130-140lm/w | LED Brand: | Osram |
| Driver: | Osram Or Meanwell | IP Rating: | IP66 |
| Life: | >50,000hrs | Warranty: | 5 Years |
| High Light: |
outdoor street lightoutdoor led street light |
||
CE Approved Die Cast Aluminum Motion Sensor Outdoor LED Street Light Rising Sun 150W
Specification
| Name | Value | |
| Model | CS-SC-150W | |
| Power | 150W | |
| CCT | 2800-6500K | |
| Lens arrangement | 6*4 | |
| Beam angle | 150*70° | |
| Brand of Chips | Osram | |
| LED Qty. | 240pcs | |
| CRI | >80 | |
| Lumen efficacy | 130Lm/W | |
| Lumen flux | 19500lm | |
| IP Rate | IP66 | |
| Voltage | 90-305V | |
| Working Environment | -40℃~50℃,20%~90% H.R | |
| Storage Temperature | -40℃~85℃10%~90% H.R. | |
| Driver Efficacy | 85% | |
| PF | >0.95 | |
| Life span | 50000H | |
| Size of light pole | φ60mm | |
| Body material | AL6063-T5 | |
| Size of Lamp | 735*350*90mm | ±5mm |
| Carton(1PCS/box) | 780*4000*120mm | ±5mm |
| N.W. | 7kg | |
Features
* Adoption Lepower exclusive light source and ZAG Lens.Compared with similar products, the
luminous efficiency can be rise by8% and light transmittance up to 98%.
* Driven by high efficiency constant current and 60% energy-saving than traditional lamps; over –
current protection, over-voltage protection, lightning protection, high temperature protection, fully
ensures the long life span and high stability.
* Durable, long lifetime, and last up to 50000 hours; no need to replace frequently and less daily
maintenance.
* Green product, no UV or IR radiation, no mercury pollution.
* With Excellent exterior design, the lamp is waterproof and dustproof, protecting rate: IP66.
* Fast response, no flicker; wide operating voltage range.
* LEDs which packaged by multi-chips is high lumen, stable performance, low light failure and no
dead lights.
More details
With Photocell, the lamp will turn on automatically at night and turn off automatically in the morning.
Installation
1,Connect the wire of lamps to the wire of engineering cable,(connect the input blue wire of lamp to
the zero line of electric supply, and connect yellow in green wire to ground wire),and put cable
into the pole then
2,Put the lamp into arm of the pole, the lamp is used for φ60mm (diameter of arm of pole)
3,Insure lamp body is smooth and steady, fasten the M10 Hexagonal cylindrical head screw. Make
sure the lamp body steady fixed to light pole pick arm.
Repair instructions
1. Cut off the power, open the back cover and ventilation panels;
2. Remove the male and female connectors of the replacement parts or power wire, remove the
screw;
3. Take out the replacement parts to replace;
4. Retightening replacement parts, male and female cable connectors or power conductors;
5. The back cover and ventilation plate lock screw;
6. The repair is completed.
FAQ
Q1. CAN I HAVE A SAMPLE ORDER FOR LED LIGHT?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. WHAT ABOUT THE LEAD TIME?
A: Sample needs 1-5 days, bulk order production time needs 1-2 weeks
Q3. WHAT KIND OF CERTIFICATION DO YOU HAVE?
A: We have CE RoHS, CCC, ISO9001
Q4. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A:Small order would be ship by International Expresses (3-7 days) or International logistics parcel (15-20 days). Bulk order would be ship by Airline (5-7 days airport to airport) and sea shipping (20-40days port to port).
Q5. IS IT OK TO PRINT MY LOGO ON LED LIGHT PRODUCT？
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. HOW TO DEAL WITH THE FAULTY?
A:During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

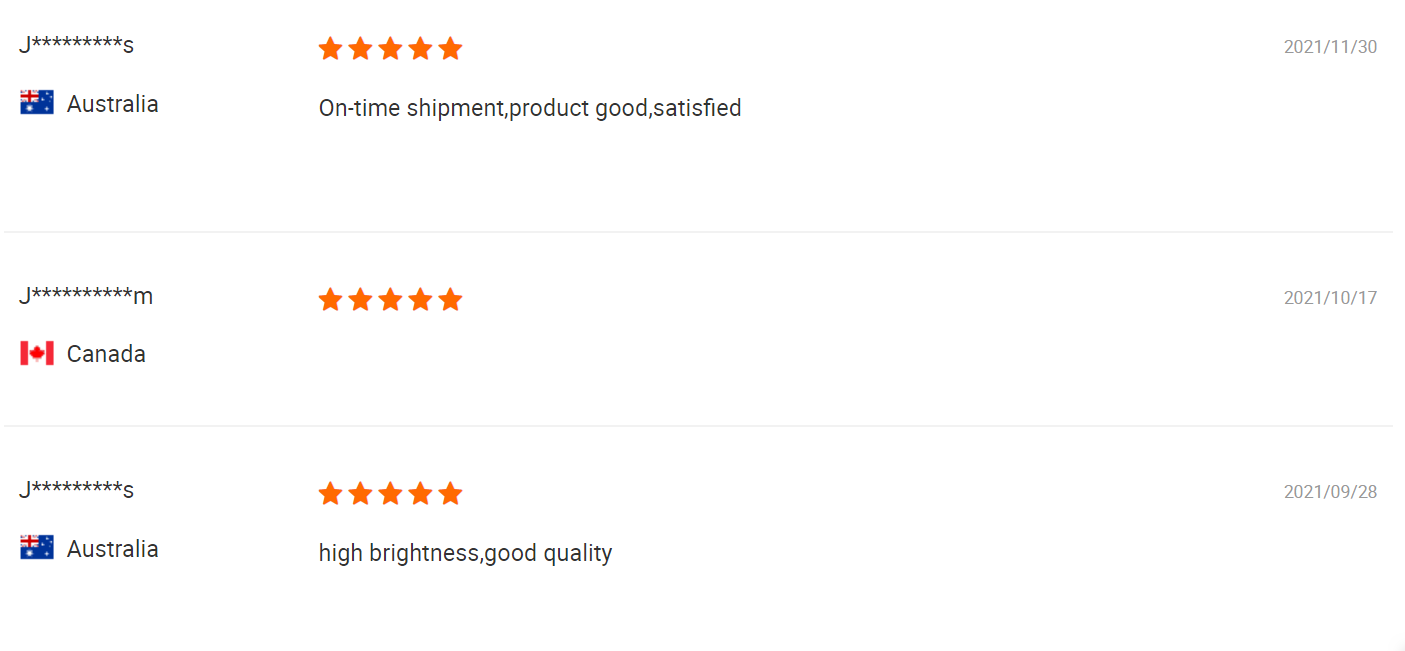

Customer's feedback
