Specification
| Input Power: | 60W | 80W | 100W | 120W | 150W | 200W | 250W |
| LED Source: | High Lumen Lumileds3030 Option | ||||||
| Drive Brand: | TAI WAN MEANWELL | ||||||
| Input Voltage: | AC100~305V 50/60HZ PF>0.9 | ||||||
| Housing Material: | Extrusion of Aluminum & Brass heat conduction | ||||||
| Housing Color: | Black/Silver | ||||||
|
Lamp Size with 45°Reflector: |
φ310*297MM | φ310*317MM | φ310*317MM | φ310*347MM | φ310*347MM | φ310*397MM | φ310*447MM |
|
Lamp Size with 120°Reflector: |
φ350*252MM | φ350*272MM | φ350*272MM | φ350*302MM | φ350*302MM | φ350*352MM | φ350*402MM |
| LED Quantity: | 60pcs | 80pcs | 100pcs | 120pcs | 154pcs | 203pcs | 252pcs |
| Luminous Flux:(LM) | 6862 ~ 7173 | 9149 ~ 9564 | 11437 ~ 11956 | 13724 ~ 14347 | 17155 ~ 17935 | 22874 ~ 23912 | 28592 ~ 29890 |
| Color Temp: | 2700K~6500K | ||||||
| IP Rating: | IP42 | ||||||
| Viewing Angle: | 45°/60°/90°/120° Degree Reflector for your option | ||||||
| Warranty: | 5 years | ||||||
| N.W(KG)/PC: | 2.33KG | 3.41KG | 3.41KG | 4.26KG | 4.26KG | 5.63KG | 6.33KG |
Features
v High efficiency Tai Wan Mean Well Driver
v High Quality Lumileds Chips 3030 2D, up to 130lm/watt, CRI>80
v Universal input voltage from AC90-305V, 50/60Hz
v Safety operating voltage from DC24-DC46V
v Copper heat pipe and vertical Aluminum heat sink technology for quicker and stronger heat transmission.

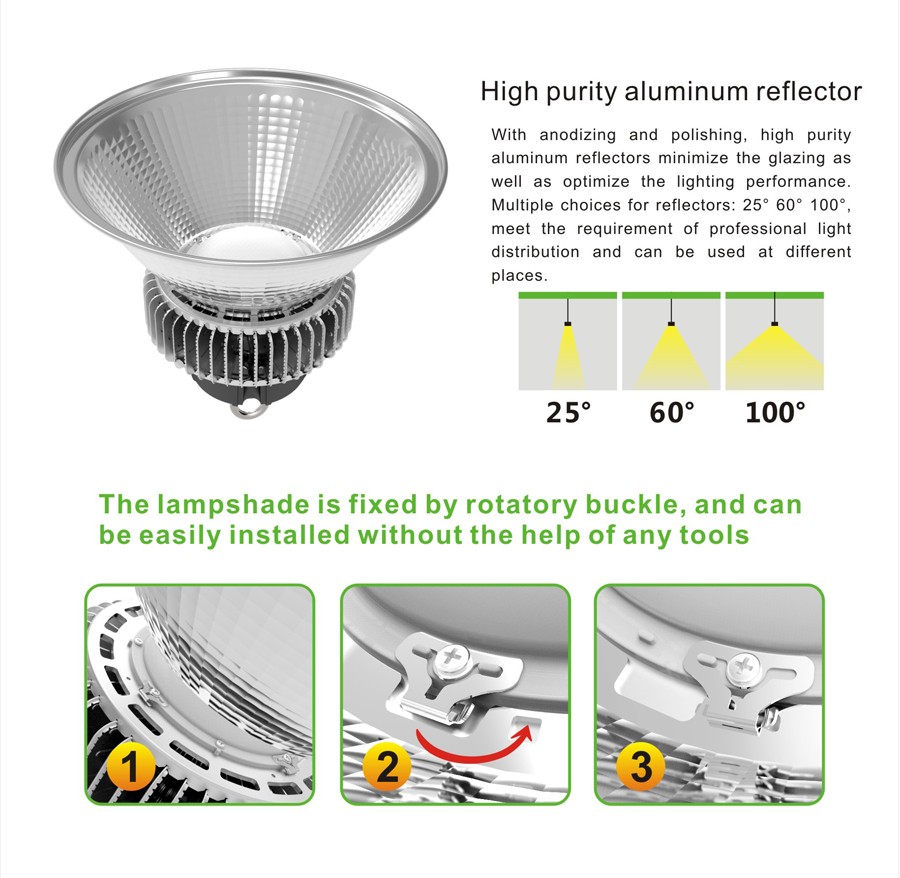

v Multi-angle reflectors make the deploy of lights easier and effective for different building size and floor heights.
v Pass the 4000V high voltage testing by TUV&ETL
v Voltage Leakage is less than 10V during operating
v Durable structure&stable performance
v Comparing to traditional Metal halide lamps can save energy 60%-70%.
v CE/RoHS approval
v Smart function: 0-10V Dimming, PMW signal, Timing optional
FAQ
Q1. CAN I HAVE A SAMPLE ORDER FOR LED LIGHT?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. WHAT ABOUT THE LEAD TIME?
A: Sample needs 1-5 days, bulk order production time needs 1-2 weeks
Q3. WHAT KIND OF CERTIFICATION DO YOU HAVE?
A: We have CE RoHS, CCC, ISO9001
Q4. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A:Small order would be ship by International Expresses (3-7 days) or International logistics parcel (15-20 days). Bulk order would be ship by Airline (5-7 days airport to airport) and sea shipping (20-40days port to port).
Q5. IS IT OK TO PRINT MY LOGO ON LED LIGHT PRODUCT？
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. HOW TO DEAL WITH THE FAULTY?
A:During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
